Ftth Self-support Drop Cable 12C Steel Wire/FRP/KFRP
Ftth Self-support Drop Cable 2C Steel Wire/FRP/KFRP is kind of strong self-support drop cable with messenger wire,which is widely used for outdoor ftth cabling system,the outer jacket is black PVC/LSZH as request,the dimension of the cable is:5.0x2.0mm,the options for the strength member is:Steel Wire/FRP/KFRP,the fiber can be:G652D/G657a1/G657a2/G657b3 or custom.
Product inquiry
Product Details

Ftth Self-support Drop Cable 12C Steel Wire/FRP/KFRP

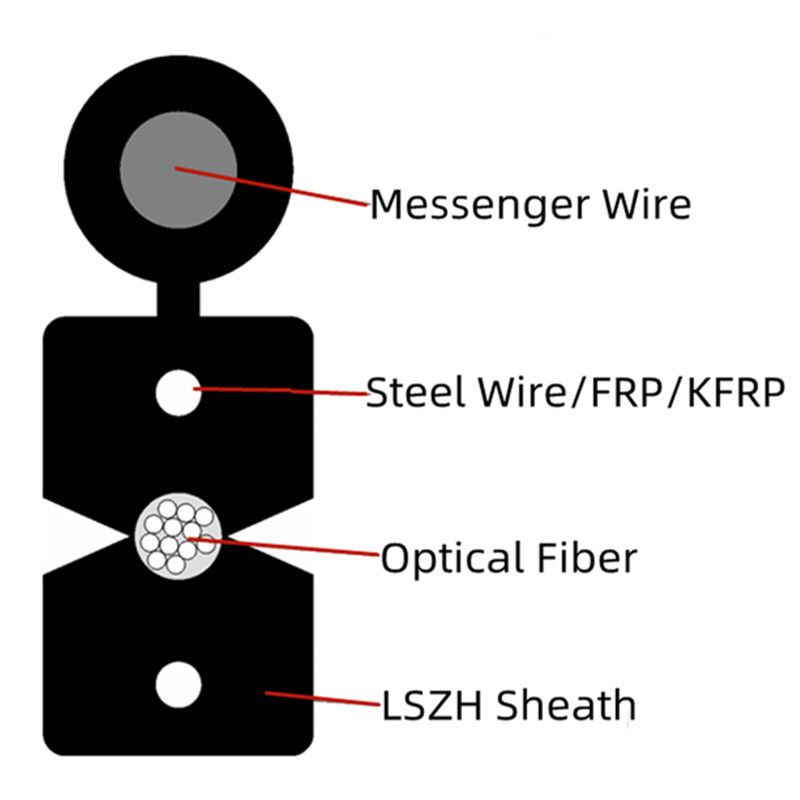

Ftth Self-support Drop Cable 12C Steel Wire/FRP/KFRP, a popular self-support drop cable for outdoor ftth cabling system,with a flat appearance, consists of a black PVC/LSZH jacket, 12 fibers and two Steel Wires/FRPs/KFRPs as strength members to provide high crush resistance. The fiber type can be specified as G652D G657A1 G657A2,G657B3 or custom.

GoodFtth is providing you all kinds of such indoor ftth flat drop cables in different models,please feel free to reach us for details.

Application:
Outdoor FTTH;
For patch cords and pigtails;
For communication equipment.

Feature:
Good mechanical and environmental characteristics;
Flame retardant characteristics;
Cable jacket options:PVC,LSZH
Strength Member options:Steel,FRP,KFRP.

Mechanical Characteristics:

Fiber

Count

Cable

Dimension

 (mm)

Cable Weight

(kg/km)

Tensile Strength

(N)

Crush Load

(N/100mm)

Min.Bending Radius

(mm)

Temperature Range

(℃)

Long Term

Short Term

Long Term

Short Term

Dynamic

Static

-20~+60

6

2.5x5.5

20.0

300

600

1000

2200

30

15

8

  2.5x5.5

21.0

300

600

1000

2200

30

15

12

  2.5x5.5

21.0

300

600

1000

2200

30

15




Optical Characteristics:

  G652DG657A1G657A2G.65562.5/12550/125
Attenuation
(+20℃)
@850nm    ≤3.0dB/km
@1300nm    ≤1.0dB/km
@1310nm≤0.40dB/km
@1550nm≤0.30dB/km≤0.45dB/km
Bandwidth
(Class A)
@850    ≥200MHZ·km≥500MHZ·km
@1300    ≥600MHZ·km≥1000MHZ·km
Numerical Aperture     0.275±0.015NA0.200±0.015NA
Cut-off Wavelength ≤1260nm≤1480nm
