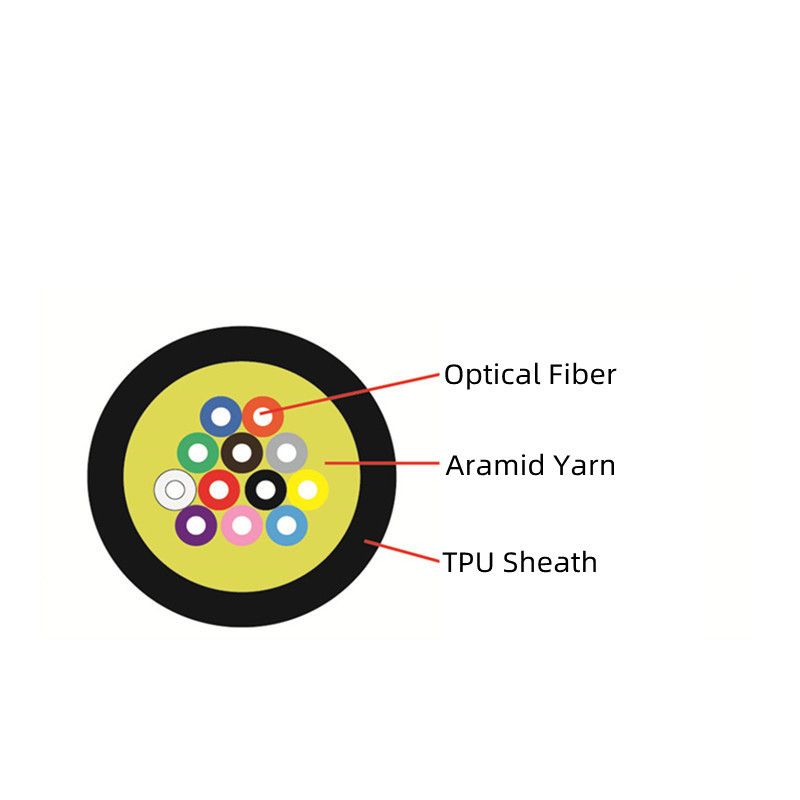

GoodFtth's tactical distribution cable is an extremely robust and flexible cable which is widely used by the military, in oil and gas and aquaculture,etc. It is especially suitable for temporary installations.The tactical cable combines features such as low weight and high mechanical characteristics.The flexible outer TPU sheath makes the cable easy to roll in and out, even in the cold weather.The cable can withstand temporary exposure to oil and other chemicals.
Application:
Harsh cold envionment(Indoor&Outdoor) .
Smart substation and CATV outdoor application.
Emergency access to optical fiber communication.
From residence to data center and cabling level.
Feature:
Soft, flexible,easy to lay and splice
Salt-mist proof, humidity proof
Good mechanical and environmental characteristics
Flame retardant characteristics
Mechanical Characteristics:
Fiber Count | Cable Dimension (mm) | Cable Weight (kg/km) | Tensile Strength (N) | Crush Load (N/100mm) | Min.Bending Radius (mm) | Temperature Range (℃) | |||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | -40~+80 | |||
1 | 2.0 | 5 | 130 | 250 | 150 | 600 | 10D | 20D | |
1 | 3.0 | 9 | 130 | 250 | 150 | 600 | 10D | 20D | |
2 | 3.0 | 9 | 130 | 250 | 150 | 600 | 10D | 20D | |
2 | 4.0 | 17 | 400 | 800 | 300 | 1200 | 10D | 20D | |
2 | 5.0 | 20 | 600 | 1200 | 500 | 2000 | 10D | 20D | |
4 | 5.0 | 21 | 600 | 1200 | 500 | 2000 | 10D | 20D | |
6 | 5.0 | 26 | 700 | 1400 | 500 | 2000 | 10D | 20D | |
8 | 6.0 | 35 | 800 | 1600 | 500 | 2000 | 10D | 20D | |
12 | 7.0 | 43 | 1000 | 2000 | 500 | 2000 | 10D | 20D | |
24 | 9.0 | 68 | 1200 | 2500 | 700 | 3000 | 10D | 20D | |
48 | 12.0 | 130 | 1200 | 2500 | 700 | 3000 | 10D | 20D | |
Optical Characteristics:
|
| G652D | G657A1 | G657A2 | G.655 | 62.5/125 | 50/125 |
Attenuation | @850nm |
|
|
|
| ≤3.0dB/km | |
@1300nm |
|
|
|
| ≤1.0dB/km | ||
@1310nm | ≤0.36dB/km |
|
| ||||
@1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |||
Bandwidth | @850 |
|
|
|
| ≥500MHZ·km | |
@1300 |
|
|
|
| ≥600MHZ·km | ≥1000MHZ·km | |
Numerical Aperture |
|
|
|
|
| 0.275±0.015NA | 0.200±0.015NA |
Cut-off Wavelength |
| ≤1260nm | ≤1480nm |
|
| ||
