Media converters are flexible and cost-effective devices for implementing and optimizing fiber links in all types of networks. Fiber optic connectivity is necessary when the distance between two network devices exceeds the transmission distance of copper cabling. Copper-to-fiber conversion using media converters enables two network device swith copper ports to be connected over extended distances via fiber optic cabling.
Media converters are available as physical layer or layer 2 switching devices, and can provide rate-switching and other advanced switching features like VLAN tagging. Media converters are typically protocol specific and are available to support a wide variety of network types and data rates.Media converters can also convert between wavelengths for Wavelength Division Multiplexing (WDM) applications.
Application:
FTTH
Security monitor
Community/Campus Network
Radio and television transmission
Feature:
Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3z, IEEE802.3ab,IEEE 802.3x auto-negotiation
Works at 10Mbps or 100Mbps, full or half-duplex mode, or 1000Mbps full-duplexmode
One SFP slot for Gigabit links
Supports auto MDI/MDIX function
Status LED for easy monitoring of device status
Supports jumbo frame size 9K bytes
FCC Class A & CE approved
Specification:

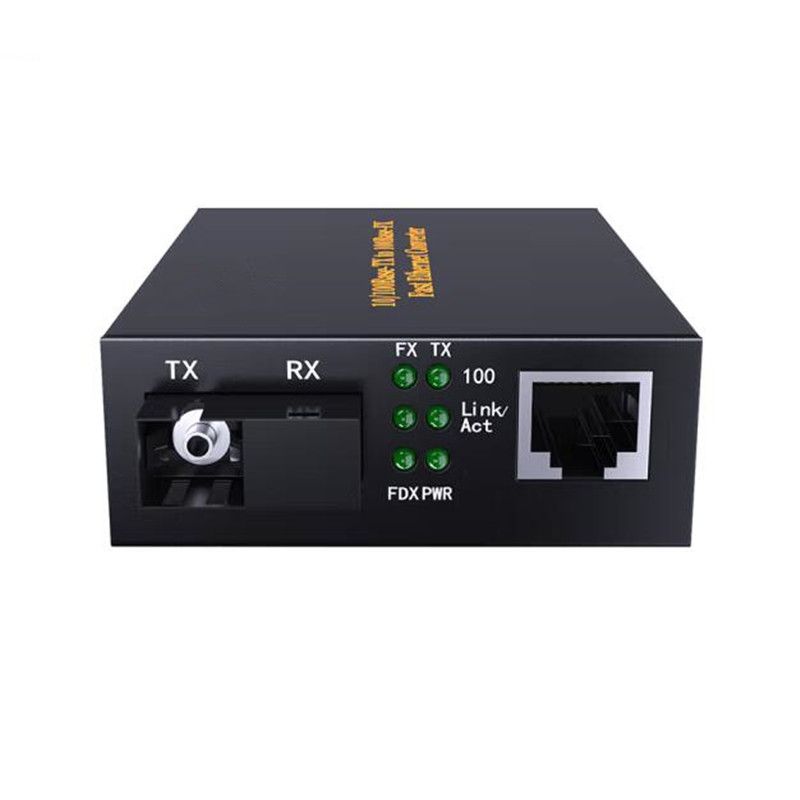

Product Name | Gigabit Singlemode single fiber Media Converter |
Standards | IEEE 802.3 10Base-T |
Ethernet Port | Connector: RJ45 |
Fiber Port | Connector: SC/FC/ST/SFP slot |
Port | One RJ45 port, Single fiber port (SC/LC/ST/FC Optional) |
Performance | Processing Type: Store and Forward |
Forward / Filter Rate | 10M: 14,880/14,880pps |
Power Supply | External : 5V DC 1A |
Operating Temperature | 0 °C to +70 °C |
Storage Temperature | -20 °C to +80 °C |
Relative Humidity | 5% to 90% (non-condensing) |
Dimensions | 95mm * 70 mm * 26mm |
Net Weight | 0.3 kg/pcs |
Warranty | 3 Years |
