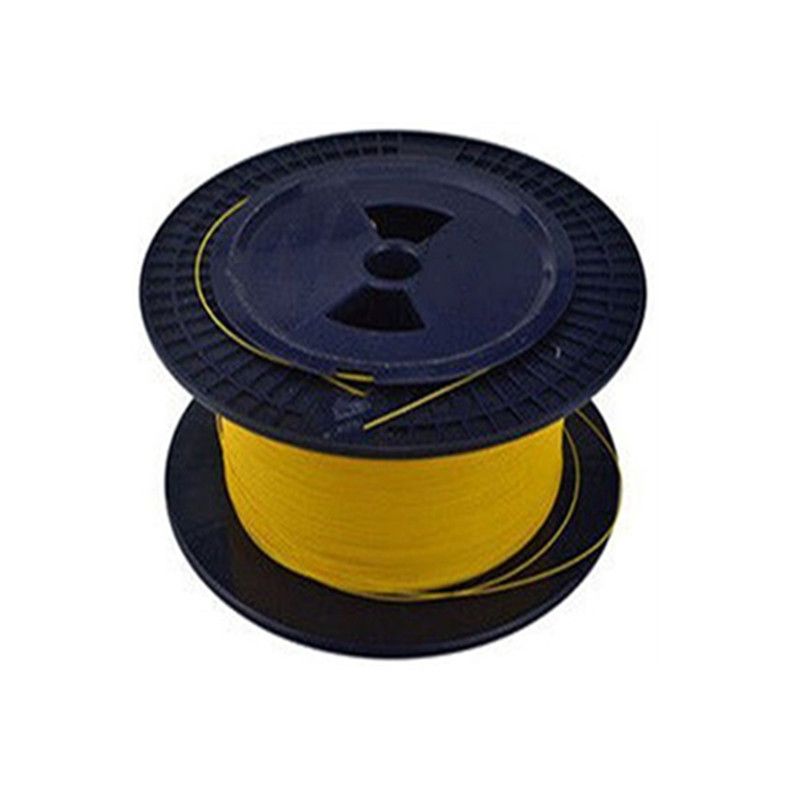

A tight-buffered fiber is the basic element of all indoor cables. Because of different buffer materials, the relevant indoor cables made out of tight-buffered fibers can meet different mechanical and environmental requirements, e.g, large tensile(crush) strength, high or low temperature, frequent bends, low smoke, no corrosive,environmental, field use, distribution cabinet (frame) and other generic use,etc
Application:
Indoor Distribution;
For Patchcords and Pigtails;
For Communication Equipment.
Feature:
Soft and Flexible;
Excellent Flame Retardant Performance;
Excellent Tensile&Crush Strength;
Cable sheath Options:PVC,LSZH,OFNP,etc.
Mechanical Characteristics:
Fiber Count | Cable Dimension (mm) | Cable Weight (kg/km) | Tensile Strength (N) | Crush Load (N/100mm) | Min.Bending Radius (mm) | Temperature Range (℃) | |||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | -20~+60 | |||
1 | 0.6 | 0.7 | 40 | 80 | 100 | 500 | 50 | 30 | |
1 | 0.9 | 0.9 | 40 | 80 | 100 | 500 | 50 | 30 | |
Optical Characteristics:
|
| G652D | G657A1 | G657A2 | G.655 | 62.5/125 | 50/125 |
Attenuation | @850nm |
|
|
|
| ≤3.0dB/km | |
@1300nm |
|
|
|
| ≤1.0dB/km | ||
@1310nm | ≤0.36dB/km |
|
| ||||
@1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |||
Bandwidth | @850 |
|
|
|
| ≥500MHZ·km | |
@1300 |
|
|
|
| ≥600MHZ·km | ≥1000MHZ·km | |
Numerical Aperture |
|
|
|
|
| 0.275±0.015NA | 0.200±0.015NA |
Cut-off Wavelength |
| ≤1260nm | ≤1480nm |
|
| ||
Note: 1.Available Fiber:G652,G655,G657 or OM1,OM2,OM3,OM4,OM5;
2. Jacket Material:PVC,LSZH,HYTREL ,OFNR,OFNP or customized;
3. Regular Jacket Color:Yellow for singlemode;Orange for multimode (OM1/ OM2);
Aqua for OM3,Magenta for OM4,Lime Green for OM5.
