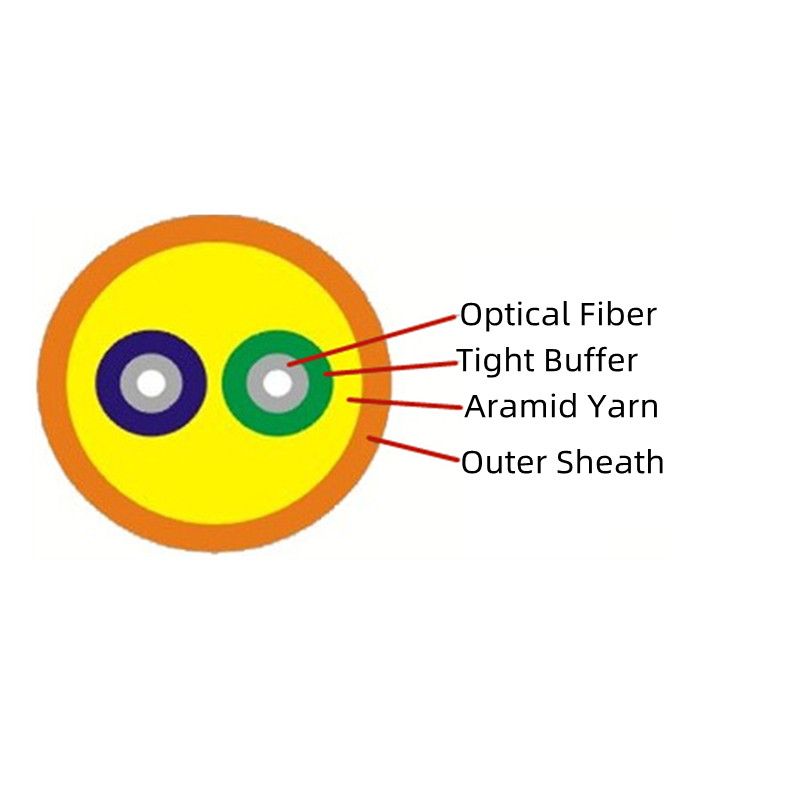

Duplex cable round constructed two single strand of fiber with 900µ tight orsemi-tight buffer tube, aramid yarn layer for strength and physical support. The outer sheath is made of PVC or low smoke zero halogen materials that use in applications where smoke emission and toxic fumes could pose a risk to human health and essential equipment in the event of a fire.
Application:
Indoor distribution;
For patchcords and pigtails;
For communication equipment.
Feature:
Soft and flexible;
Excellent flame retardant performance;
Excellent tensile&crushstrength;
Cable sheath options:PVC,LSZH,OFNP,etc.
Mechanical Characteristics:
Fiber Count | Cable Dimension (mm) | Cable Weight (kg/km) | Tensile Strength (N) | Crush Load (N/100mm) | Min.Bending Radius (mm) | Temperature Range (℃) | |||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | -20~+60 | |||
2 | 3.2 | 8.5 | 80 | 150 | 200 | 1000 | 50 | 30 | |
2 | 3.8 | 11.5 | 100 | 200 | 200 | 1000 | 50 | 30 | |
2 | 4.5 | 15.2 | 150 | 300 | 200 | 1000 | 50 | 30 | |
2 | 5.0 | 17.5 | 200 | 400 | 200 | 1000 | 50 | 30 | |
|
| G652D | G657A1 | G657A2 | G.655 | 62.5/125 | 50/125 |
Attenuation | @850nm |
|
|
|
| ≤3.0dB/km | |
@1300nm |
|
|
|
| ≤1.0dB/km | ||
@1310nm | ≤0.36dB/km |
|
| ||||
@1550nm | ≤0.22dB/km | ≤0.23dB/km |
|
| |||
Bandwidth | @850 |
|
|
|
| ≥500MHZ·km | |
@1300 |
|
|
|
| ≥600MHZ·km | ≥1000MHZ·km | |
Numerical Aperture |
|
|
|
|
| 0.275±0.015NA | 0.200±0.015NA |
Cut-off Wavelength |
| ≤1260nm | ≤1480nm |
|
| ||
Note: 1.Available Fiber:G652,G655,G657 or OM1,OM2,OM3,OM4,OM5;
2. Jacket Material:PVC,LSZH,HYTREL ,OFNR,OFNP or customized;
3. Regular Jacket Color:Yellow for singlemode;Orange for multimode (OM1/ OM2);
Aqua for OM3,Magenta for OM4,Lime Green for OM5.
