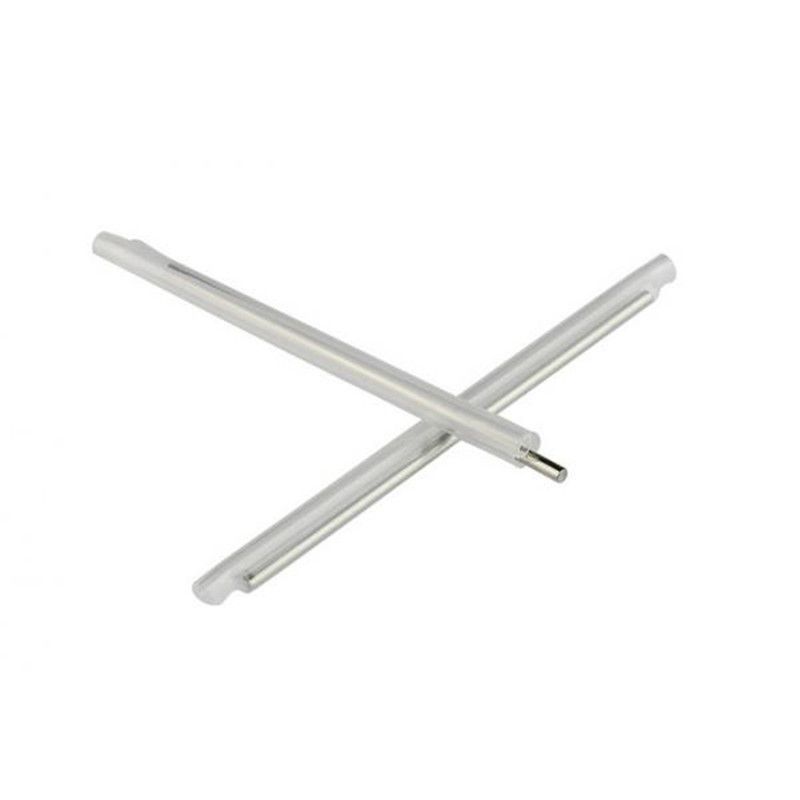

Heat shrinkable splice protection sleeve is a type of heat shrinkable sleeve with minimum recovery celsius temperature 120 degrees and operating temperaturerange from -45 degree to 100 degrees, it consists of heat shrinkable sleeve (outer tube ), fusion tube (inner tube) and 304 grade stainless steel strength member.
We offer all kinds of splice protection heat shrinkable sleeves for FTTH appliance,including simplex/duplex/ribbon types,etc will different length,the stainless steel rod can be singular or dual according to your requirement. Please contact us for details.
Application:
Patch panels
Distribution frames
Fiber optic splice closures
Splice tray
Feature:
Protect the joint point ofoptical fiber
Keep the transmisstion performanceof optical fiber
Keep the splice pioint with goodresistance of humidity and teperature
Easy to install and avoid damageto the optical fiber
Premium 304 grade stainless steelused to make strength member
Strength member with endspolished & chamfered
The fiber optic protector sleeve with ends fully sealed,keeping strength member fixed.
Specification:
Length of Tube | Hot-Melt Tube | Steel Needle | |||
After Recovery (mm) | Length (mm) | Inside Dia. (mm) | Length (mm) | Dia. (mm) | Length (mm) |
2.5±0.1 | 60 | 1.7 | 60 | 1.0 | 54 |
2.5±0.1 | 55 | 1.7 | 55 | 1.0 | 50 |
2.5±0.1 | 50 | 1.7 | 50 | 1.0 | 45 |
2.5±0.1 | 45 | 1.7 | 45 | 1.0 | 40 |
2.5±0.1 | 40 | 1.7 | 40 | 1.0 | 35 |
