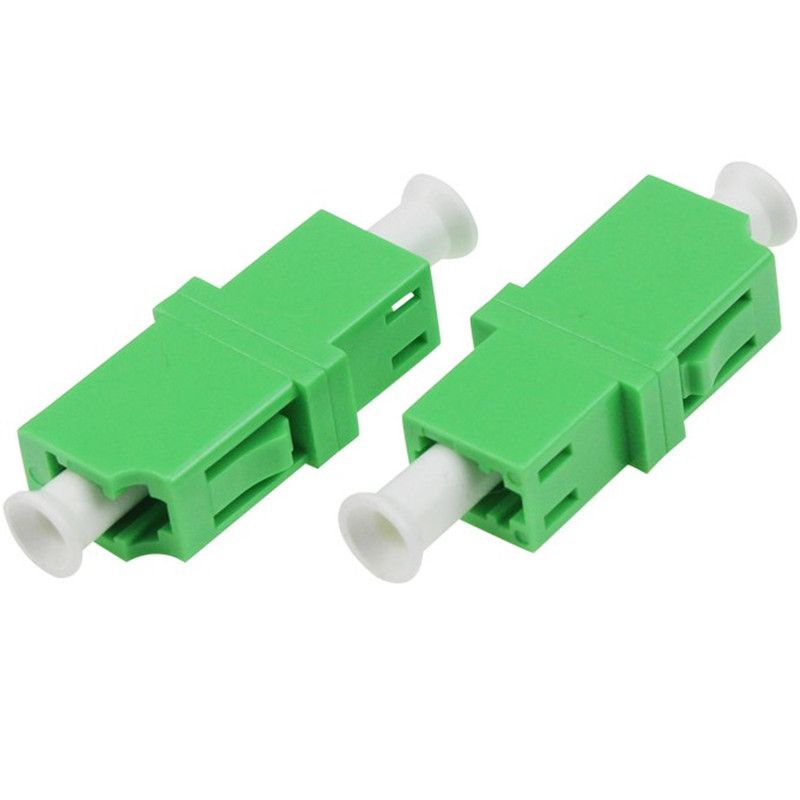

LC Adapter Simplex Duplex Quad

LC Fiber Adaptors are used to link the LC patch cables or device. Usually they are female to female type but there is also female to male type available. Typical good quality fiber adapters are with ceramic sleeves for single mode. Sometimes people also use phosphor bronze sleeve for multimode.GoodFtth's LC fiber coupler is comprised of a plastic or metal outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/ phosphor bronze alignment sleeve and precision moulded polymer housing provides consistent long-term mechanical and optical performance.

Product inquiry

Product Details

GoodFtth provides lots of LC adapters in Simplex,duplex,quad,8 Core or 12 Core with ceramic or phosphor bronze sleeves,flange or flangeless types are for options. Their materials meet the RoHS compliance and EIA/TIA standard.

Application:

LAN System

CATV System

Testing Equipment

Telecommunication System

Feature:

Low insertion loss

High precision alignment
Good repeatability and exchangeability

Available Ceramic or PB Sleeves

Specification:

Parameter	Unit	Fiber Adapter LC
		PC	UPC	APC
Insertion Loss (Typical)	dB	≤0.2	≤0.2	≤0.2
Exchange ability	dB	≤0.2
Repeat ability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	℃	-40~75
Storage Temperature	℃	-45~85
