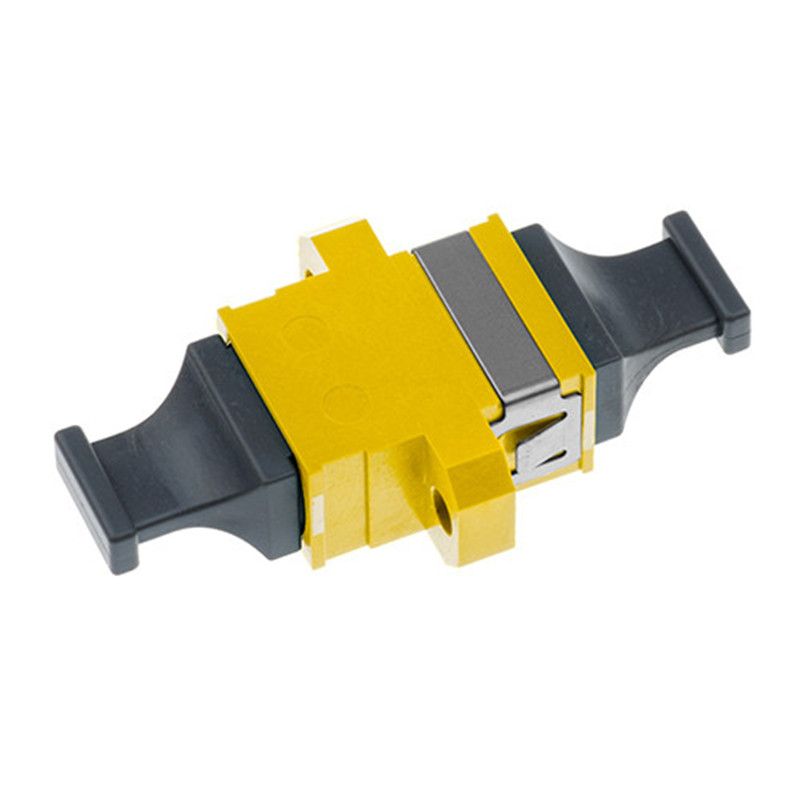

MPO MTP Adapters Singlemode Multimode

Fiber Adapters (mating sleeve fiber adapter or standard fiber adapter or bulkhead type fiber adapter) are used to link the fiber cables or device. Usually they are female to female type but there is also female to male type available. Typical good quality fiber adapters are with ceramic sleeves for Single mode. Sometimes people also use phosphor bronze sleeve for multimode.GoodFtth's fiber adaptor is comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism. The combination of a ceramic/ phosphor bronze alignment sleeve and precision moulded polymer housing provides consistent long-term mechanical and optical performance.

Product inquiry

Product Details

GoodFtth provides a variety of MPO/MTP fiber adapters,custom color is accepted.All of these MPO MTP adaptors materials meet the RoHS compliance and EIA/TIA standard.

Application:

LAN System

CATV System

Testing Equipment

Telecommunication System

Feature:

Low insertion loss

High precision alignment
Good repeatability and exchangeability

Available Ceramic or PB Sleeves

Specification:

Parameter	Unit	Fiber Adapter MPO MTP
		PC	UPC	APC
Insertion Loss (Typical)	dB	≤0.6	≤0.75	≤0.75
Exchange ability	dB	≤0.2
Repeat ability	dB	≤0.2
Durability	Time	>1000
Operating Temperature	℃	-40~75
Storage Temperature	℃	-45~85
