The use of a dust shutter adapter helps to ensure a dust-free connection. This is especially important in data center applications where there is a need to protect sensitive equipment from dust and other contaminants. These shuttered adapters keep the fiber end interior clean and dry, which is critical to maintaining a high-quality connection,also helps to protect the eye from the laser light emitted from the end of the fiber optic cable. Without a dust shutter, the laser light can reflect off dust particles and enter the eye, potentially causing damage. The shutters will open and close automatically with the plug insertion and removal, which is easy to use.

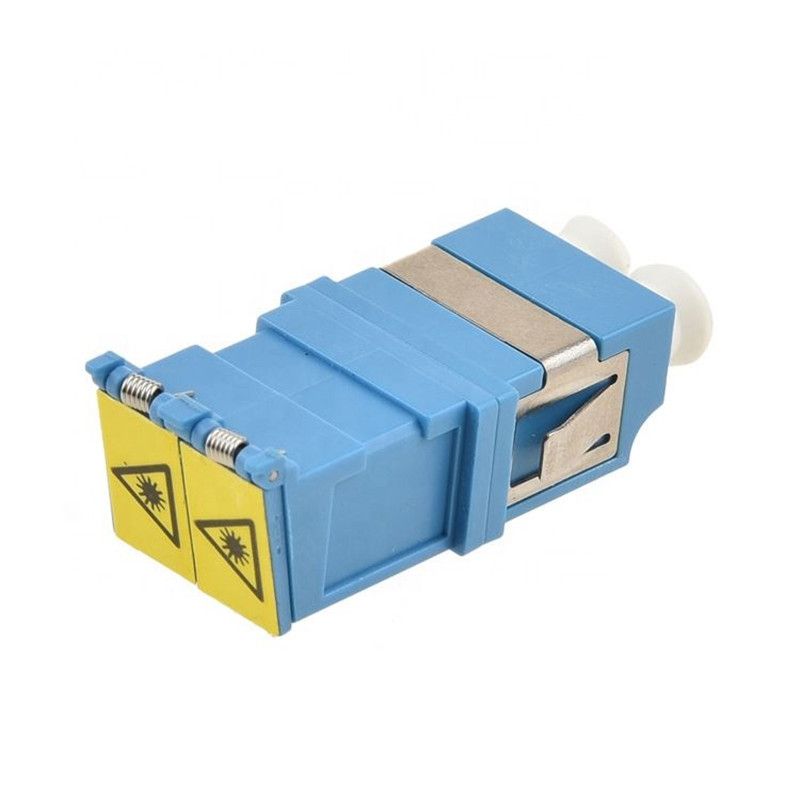

GoodFtth's dust shutter is placed over the end of an LC or SC adapter.The shutter automatically opens when a plug is inserted and closes when the fiber port is removed, providing a dust-free connection. Unlike the regular fiber adapter, the shuttered adapter has a shutter mechanism to help prevent contaminants from entering the ferrule end face.All the materials are RoHS compliant and meet EIA/TIA standard.
Application:
LAN System
CATV System
Testing Equipment
Telecommunication System
Feature:
Low insertion loss
High precision alignment
Good repeatability and exchangeability
Available Ceramic or PB Sleeves
Specification:
Parameter | Unit | Shutter Adapter SC LC | ||
PC | UPC | APC | ||
Insertion Loss (Typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 |
Exchange ability | dB | ≤0.2 | ||
Repeat ability | dB | ≤0.2 | ||
Durability | Time | >1000 | ||
Operating Temperature | ℃ | -40~75 | ||
Storage Temperature | ℃ | -45~85 | ||
