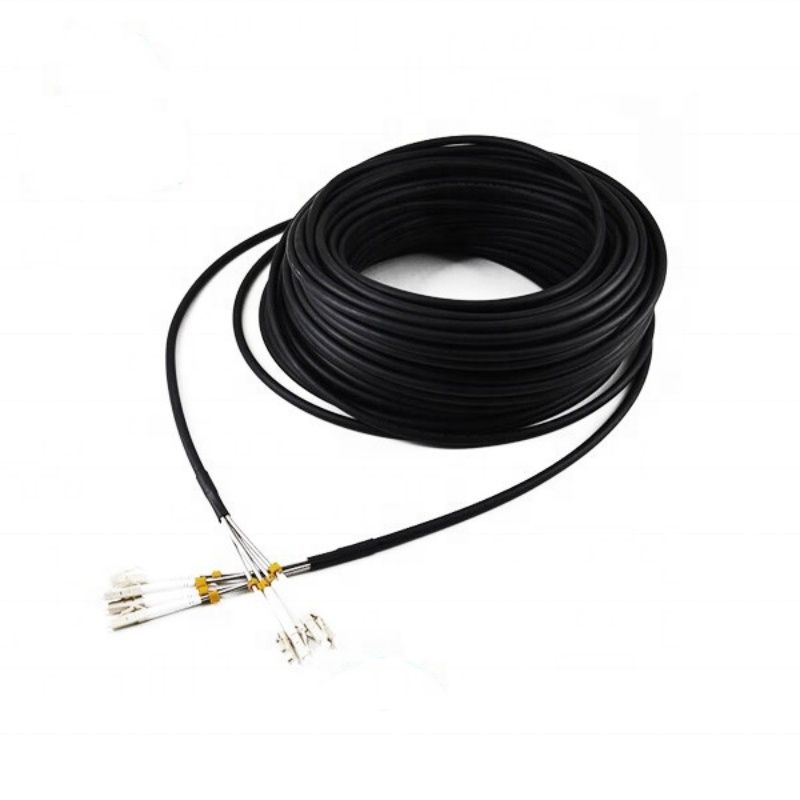

FTTA (CPRI) patch cord is designed for high reliability in harsh environment applications, such as: wireless communication systems,it is a good solution for Fiber To The Antenna.The regular terminators of such patch cords are usually LC, the cable features superior crush resistance and a high degree of flexibility with or without the armored tube. And the cable outer sheath features a flame retardant LSZH which is UV stabilized and highly resistant to chemicals commonly found in industrial environments, suitable for both indoor and outdoor industrial installations.
The regular fiber counts for FTTA patch cords are 2 or 4,the outer diameter can be 7.0mm or 4.8mm.According to customers' requirement,the cable can be with or without armour.There are also different types such as for Nokia style,Huawei,Fullaxe,etc.Please reach GoodFtth for details.
Application:
Telecommunication System
Optical Access Network
Fiber Networking Channel
High Density Data Center
Feature:
Rapid Configuration
Application up to 400G
High Reliability and Stability
Supports up to144F
Specification:
Connector Type | Performance Data | |||
Connector | Polishing Mode | IL(dB) | RL(dB) | |
SC/LC/FC/ST/MU/E2000 | SM | UPC | ≤0.3 | ≥50 |
APC | ≤0.3 | ≥60 | ||
MM | PC | ≤0.3 | ≥35 | |
MTP/MPO | SM | APC | ≤0.75 | ≥60 |
MM | PC | ≤0.6 | ≥20 | |
MTRJ | SM | PC | ≤0.5 | ≥50 |
MM | PC | ≤0.5 | ≥35 |
