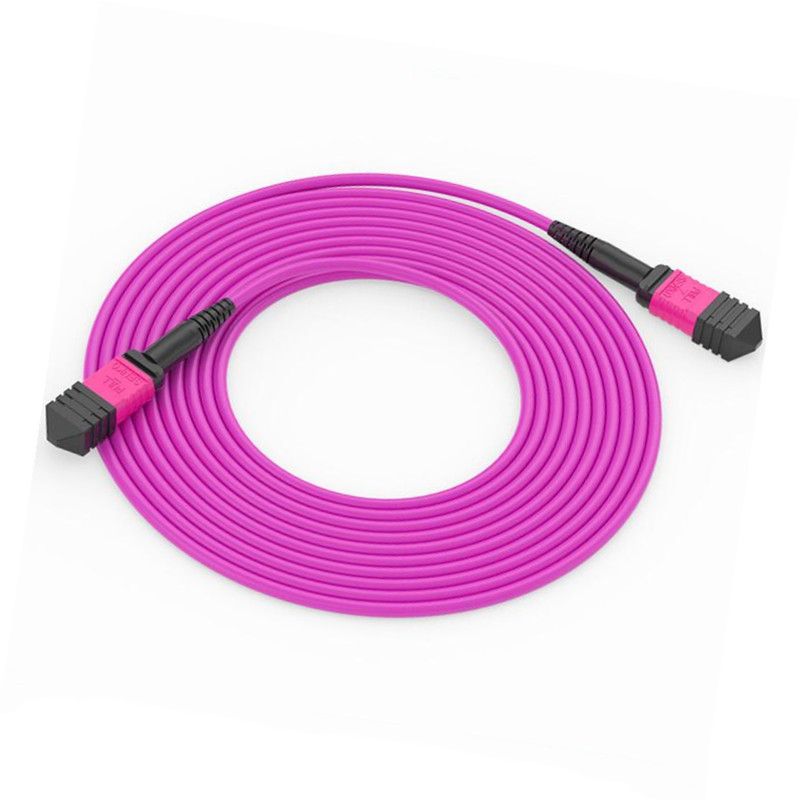

MTP/MPO trunk cable, a cost-effective alternative to time-consuming field termination,is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles, is terminated with an MTP or MPO multi fiber type connectors on both ends,each connector uses a multicore type fiber optic cable which contains multi fiber in one single jacket, so that the MTP/MPO trunk cables can greatly save space and can be very convenient. MTP/MPO cable assemblies provide up to 144 fibers connections in a single point, reducing the physical space and labor requirement, while providing the same bandwidth capacity of a multi-fiber cable with individual fiber connector terminations per cable.
MTP/MPO trunk cable assemblies facilitate rapid deployment of high density cabling in data centers or other high fiber density environments in order to reduce network installation or reconfiguration time and cost. They are typically widely usedfor patching within MDA zone or interconnect MTP MPO active equipment ports with backbone cabling.
Application:
Telecommunication System
Optical Access Network
Fiber Networking Channel
High Density Data Center
Feature:
Rapid Configuration
Application upto 400G
High Reliability and Stability
Supports up to144F
Specification:
Description | Standard | Elite | ||||
Connector | Polishing Mode | IL(dB) | RL(dB) | IL(dB) | RL(dB) | |
MTP/MPO | SM | APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 |
MM | PC | ≤0.6 | ≥20 | ≤0.35 | ≥20 | |
