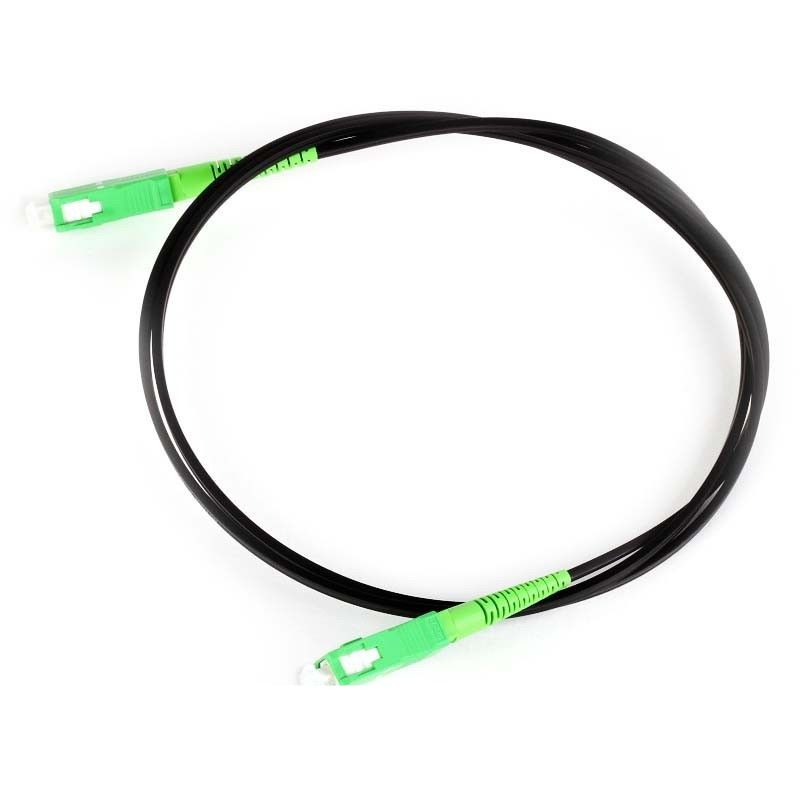

FTTH Drop Cable Patch Cord is a kind of patch cord assemblied with FTTH drop cable available for indoor and outdoor application.GoodFtth offers users different cables(flat type, round type and figure 8) with different end connectors(SC, FC, LC, ST,etc.)with PC, UPC or APC polishing mode. As the development of FTTH project deployments, FTTH is easily affordable technology with many advantage, such as wider bandwidth, reliability and low cost in order to meet the next generation customers’ demand. FTTH can provide the customers with information such as DATA, VOICE,&VIDEO using only one fiber.
Drop Cable patch cords have been widely applied in FTTH cabling system. They can also be used for short distance outdoor cablings. GoodFtth’s FTTH drop cable patch cords are terminated with fiber optic connectors on both ends,easy and convenient to operate.
Application:
Data Transmission System
Optical Access Network
Communication system
Feature:
Good mechanicaland environmental characteristics
Steel/FRP/KFRP strength members
High Tensionand Stability
Low InsertionLoss
Specification:
Connector Type | Performance Data | |||
Connector | Polishing Mode | IL(dB) | RL(dB) | |
SC/LC/FC/ST/MU/E2000 | SM | UPC | ≤0.3 | ≥50 |
APC | ≤0.3 | ≥60 | ||
MM | PC | ≤0.3 | ≥35 | |
MTP/MPO | SM | APC | ≤0.75 | ≥60 |
MM | PC | ≤0.6 | ≥20 | |
MTRJ | SM | PC | ≤0.5 | ≥50 |
MM | PC | ≤0.5 | ≥35 | |
